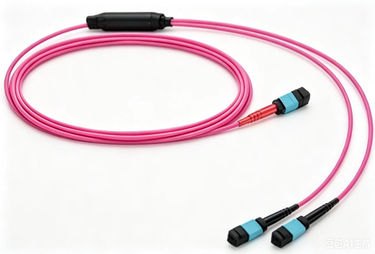

OM4 MPO/MTP® 24fiber 1x2 Fanout Hybrid Patch cord

The OM4 MPO/MTP® 24 fiber 1x2 fanout hybrid patch cord is designed for high-performance data transmission in data centers and network environments.

The OM4 rating ensures optimized bandwidth capacity and a reduced modal dispersion, making it ideal for high-speed applications. This patch cord is built to withstand the demands of modern networking while ensuring reliable performance and minimal signal loss.

Features

• Highly customizable to user preference

• Custom color jackets and connectors

MTP® Connector Compliances TIA/EIA-604-5

CONNECTOR                                    TYPICAL IL             MAX IL             RETURN LOSS

Multimode MTP®                            0.20 dB                    0.55 dB             ≥ -20 dB

Multimode MTP® (Low Loss)       0.10 dB                    0.15 dB             ≥ -20 dB

Cable Standard

-

Multimode 50μm OM3 / OM4 / OM5

        AVAILABLE FIBER TYPES (7.5mm Bend Radius)

        Corning® ClearCurve® OM3 optical fiber compliant to TIA492-AAAC-B, A1a.2 to IEC60793-2-10

        Corning® ClearCurve® OM4 optical fiber compliant to TIA492-AAAD, A1a.3 to IEC60793-2-10

        Corning® ClearCurve® OM5 optical fiber compliant to TIA492-AAAE, A1-OM5 to IEC60793-2-10
