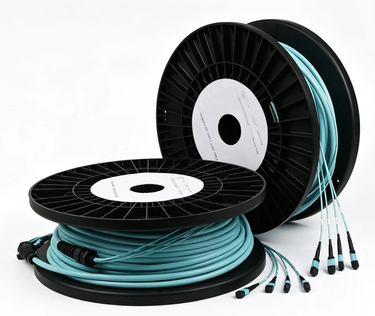

OM3, OM4 MPO/MTP 48 fiber Trunk Cable

The AIFIBER OM3/OM4 48 fiber MTP® Trunk Assemblies deliver scalable, high-density connectivity designed for the most demanding data center, enterprise, and telecom environments. Our trunks are available in multiple fiber counts — including 8, 12, 16, 24, and 32 — with both single-mode and multimode options.

We offer full customization to meet your exact design requirements, including breakout configurations, staggered fanouts, polarity, cable type, and length. Whether for hyper scale infrastructure or high-speed backbone links, AIFIBER MTP® trunks provide the flexibility, performance, and reliability you need — all while maintaining compliance with NDAA, BAA, and TAA standards.

Features

• Highly customizable to user preference

• Custom color jackets and connectors

MTP® Connector Compliances TIA/EIA-604-5

CONNECTOR                                    TYPICAL IL             MAX IL             RETURN LOSS

Single-mode MTP®                         0.25 dB                    0.75 dB             ≥ -60 dB

Single-mode MTP® (Low Loss)    0.10 dB                    0.15 dB             ≥ -20 dB

Multimode MTP®                            0.20 dB                    0.55 dB             ≥ -20 dB

Multimode MTP® (Low Loss)       0.10 dB                    0.15 dB             ≥ -20 dB

Cable Standard

-

Single-mode OS2

       The standard single-mode offering is a 10mm OS2 bend insensitive fiber. Bend performances of 7.5mm and 5.0mm are also available.

-

Multimode 62.5µm OM1

-

Multimode 50μm OM3 / OM4 / OM5

        AVAILABLE FIBER TYPES (7.5mm Bend Radius)

        Corning® ClearCurve® OM3 optical fiber compliant to TIA492-AAAC-B, A1a.2 to IEC60793-2-10

        Corning® ClearCurve® OM4 optical fiber compliant to TIA492-AAAD, A1a.3 to IEC60793-2-10

        Corning® ClearCurve® OM5 optical fiber compliant to TIA492-AAAE, A1-OM5 to IEC60793-2-10
