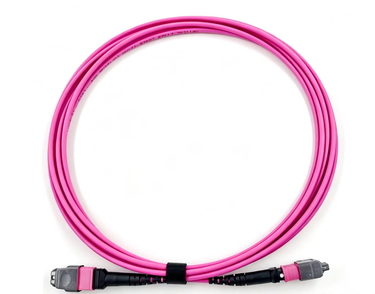

OM4, OM5 MPO/MTP® 8/12/24 fiber Trunk Cable

The OM4, OM5 MPO/MTP® trunk cable represents a sophisticated connectivity option crafted to enhance high-speed data transmission.

The MPO/MTP® connectors offer a compact and reliable way to connect multiple fibers while occupying minimal space. This trunk cable not only improves connectivity but also streamlines installation and scalability within network infrastructure, facilitating seamless upgrades and enhanced capacity as data requirements increase.

Features

• Highly customizable to user preference

• Custom color jackets and connectors

MTP® Connector Compliances TIA/EIA-604-5

CONNECTOR                                    TYPICAL IL             MAX IL             RETURN LOSS

Multimode MTP®                            0.20 dB                    0.55 dB             ≥ -20 dB

Multimode MTP® (Low Loss)       0.10 dB                    0.15 dB             ≥ -20 dB

Cable Standard

-

Multimode 50μm OM3 / OM4 / OM5

        AVAILABLE FIBER TYPES (7.5mm Bend Radius)

        Corning® ClearCurve® OM3 optical fiber compliant to TIA492-AAAC-B, A1a.2 to IEC60793-2-10

        Corning® ClearCurve® OM4 optical fiber compliant to TIA492-AAAD, A1a.3 to IEC60793-2-10

        Corning® ClearCurve® OM5 optical fiber compliant to TIA492-AAAE, A1-OM5 to IEC60793-2-10
