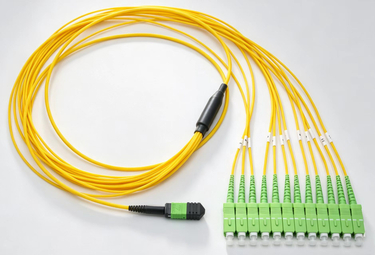

MTP®/MPO to SC Harness

MTP® Harness feature color coded and standard MTP® brand connectors with a matching outer jacket color cable. Connectors are available in single-mode and multimode fiber options.

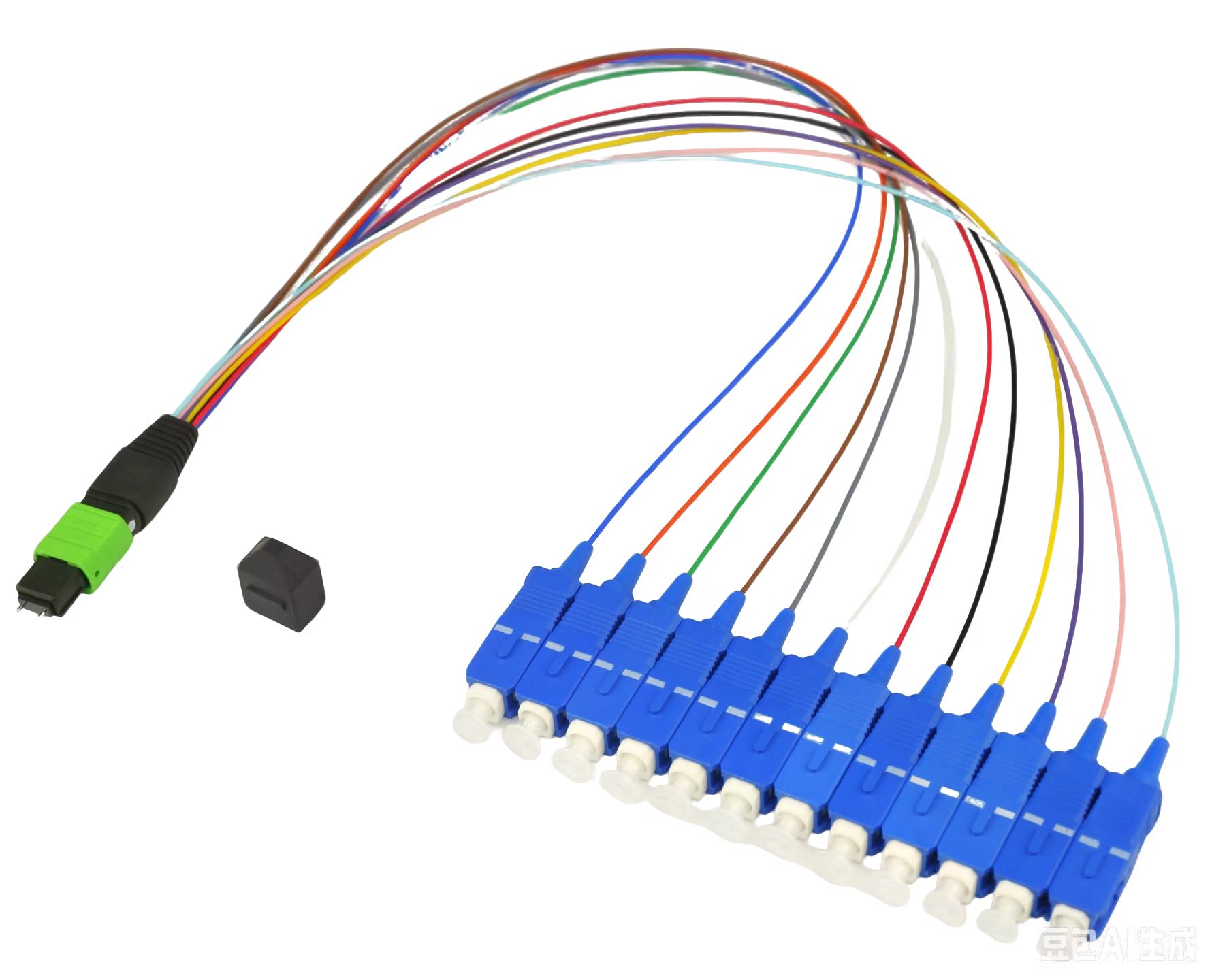

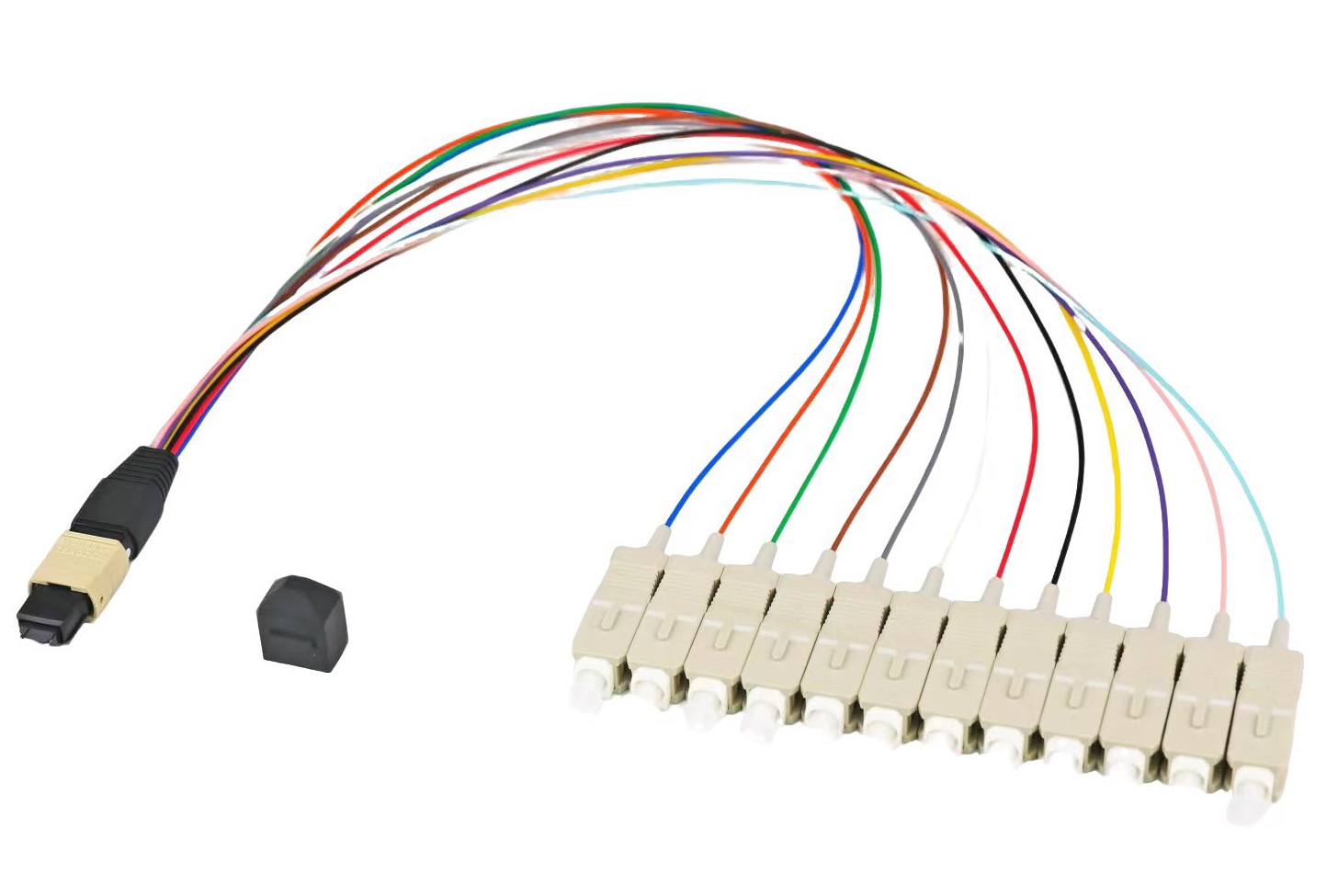

The MTP®/MPO harness is an essential component for connecting optical fibers in cassette applications. This harness facilitates high-speed data transfer by converting the multi-fiber MTP®/MPO interfaces into single-fiber 0.9mm SC/upc SC/apc connections, ensuring compatibility with MTP® Cassette.

Features

• Highly customizable to user preference

• Custom color jackets and connectors

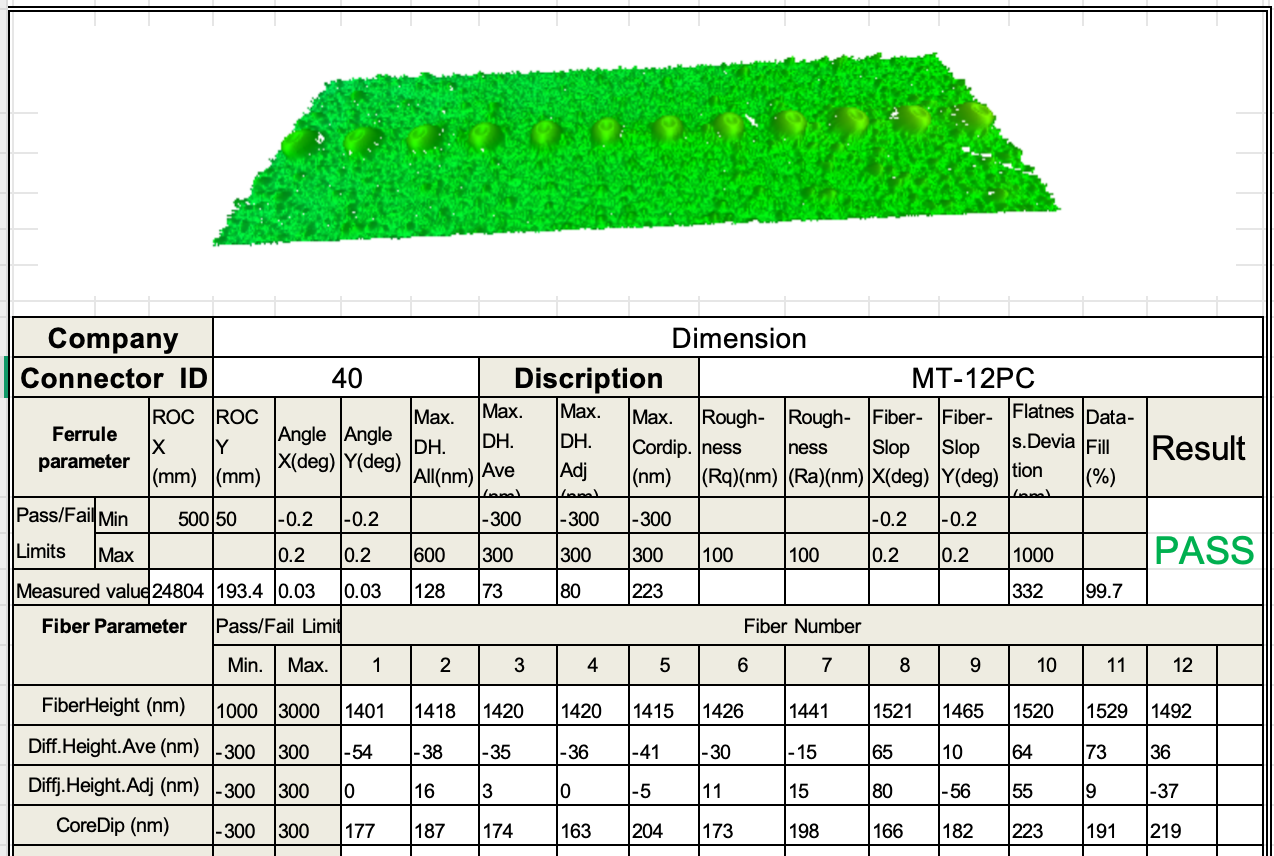

MTP® Connector Compliances TIA/EIA-604-5

CONNECTOR                                    TYPICAL IL             MAX IL             RETURN LOSS

Single-mode MTP®                         0.25 dB                    0.75 dB             ≥ -60 dB

Single-mode MTP® (Low Loss)    0.10 dB                    0.15 dB             ≥ -20 dB

Multimode MTP®                            0.20 dB                    0.55 dB             ≥ -20 dB

Multimode MTP® (Low Loss)       0.10 dB                    0.15 dB             ≥ -20 dB

Cable Standard

-

Single-mode OS2

       The standard single-mode offering is a 10mm OS2 bend insensitive fiber. Bend performances of 7.5mm and 5.0mm are also available.

-

Multimode 62.5µm OM1

-

Multimode 50μm OM3 / OM4 / OM5

        AVAILABLE FIBER TYPES (7.5mm Bend Radius)

        Corning® ClearCurve® OM3 optical fiber compliant to TIA492-AAAC-B, A1a.2 to IEC60793-2-10

        Corning® ClearCurve® OM4 optical fiber compliant to TIA492-AAAD, A1a.3 to IEC60793-2-10

        Corning® ClearCurve® OM5 optical fiber compliant to TIA492-AAAE, A1-OM5 to IEC60793-2-10
